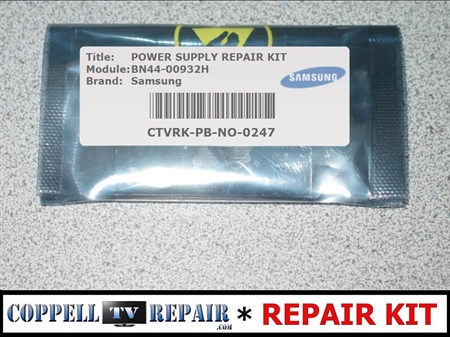

Coppell TV Repair LLC offers a repair kit with components we've used in shop to fix failures in power supply board BN44-00932H used in Samsung models QN49Q60RAFXZA, QN55Q60RAFXZA, QN55Q6DRAFXZA, QN49Q6DRAFXZA and possibly others.
The typical failure is a totally dead TV and the best indication for it is a blown open main fuse FP801S, complimented by a short in the power switching transistor or a visibly busted capacuitor from the below list.
The kit contains brand new replacement components (OEM or equivalent substitutes) for the following positions: FP801S, QP801CS, CP801, CP805 - where the value of CP801 is smaller than that of CP805.
Thermal paste is also included and is meant to be applied beteen the heat sink and the power switching component(s) like transistors, ICs, etc. It is NOT to be used as silicone to cover the legs of the power components!
In our experience CP801 is the one that tends to bust more often although that probably depends on the parts used in various batches of the manufactured boards.
Applying the kit requires soldering skills and soldering equipment.
Neither is included in the repair kit.
WARRANTY CONDITIONS
Coppell TV Repair LLC does not guarantee that this product is all that is needed to resolve the problems with your TV.
Most of the repair kits we offer are based on first hand experience servicing boards at our repair facility.
Over time they may get expanded with our own experience or information from manufacturer service bulletins, customer feedback etc.
Yet failure can be unique and there can not be guarantee that what has worked one, ten or even hundred times will also work the next one.
Just as important, every repair involves about equal portion of quality of parts and quality of worksmanship and as we have no control over the worksmanship quality unless we are the ones performing it we would be unwise to provide warranty of the products utilized by that worksmanship.
As such, no warranty is offered on this product once the components in it are soldered on a board.
If you would like warranty please see if a REPAIR SERVICE is offered instead of a kit. Unless otherwise noted all our repair services do come with a standard warranty.
