REPAIR KIT FOR THE Va TRACT OF SAMSUNG POWER SUPPLY BOARD BN44-00161A BN44-00162A


If your power BN44-00161A / BN44-0162A clicks and does not want to turn on or if it already busted one or two small transistors this is the repair kit you need!
$11.85 (USD)
:

Coppell TV Repair offers you the essential components needed to repair the Va tract of power supply board BN44-00161A / BN44-0162A.

The board is used in a number of Samsung plasma TV models from the HPT42 and PL42 series including, but not limited to HPT4234X, HPT4254, HPT4254X, HPT4264X, PL42C71HDPX, PL42C91HPX and PL42Q91HDPX.

The signs of failure are usually visible with naked eye in the form of burned / blown open transistor QX801 and/or QX802 and usually burned pair of resistors RX833/RX802 and/or RX803/RX832 which are closely located to the transistors at the bottom of the board.

Whenever the resistors are blown it is almost guaranteed that the SMD diode they are connected in parallel with is also blown.

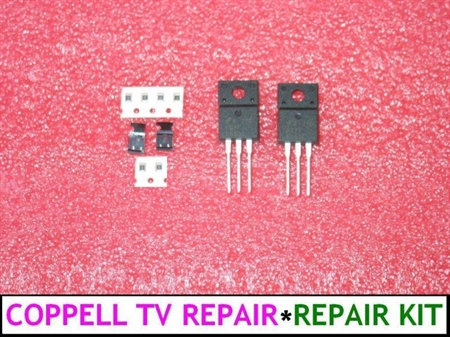

Kit contents:

  • Transistors QX801 and QX802
  • SMD resistors RX802, RX803, RX832, RX833 (all with the same value)
  • SMD resistors RX804 and RX805 (same value)
  • SMD diodes DX803 and DX804 (same kind)

We recommend that you replace all of the above components although it is not uncommon for some of them (like RX804 and RX805 for example) to be intact after the failure.

Diodes on the board are especially hard to test since they are in parallel with the low-value resistors; we always replace the one from the group with blown resistors and usually do not replace the other....so far without problems.

Important note 1: We do not guarantee that this kit is all that you need. It gives you the essentials which cover easily 90% of all cases, but the proper diagnose and coverage of the remaining 10% even when problem is properly diagnosed are your responsibility.

Important note 2: The kit requires advanced soldering skills! A generic 60 watt soldering iron is not your best tool when handling those! Use at your risk and if you think this is not for you, use our board repair service instead (or someone else's of course).

All parts are brand new. We use the same kit in our own repair facility.

SHIPPING

The default shipping option for the kit is via USPS First Class Mail.
